Industrial Type

ECO-300KSN

Household & Industrial Type Compost Fertilizer Machines

KSN Compost Fertilizer Machine

Octoen Proudly Presents the World’s First Fully Integrated Bio Digesters Compost Machine

2 years warranty Stainless steel body One-touch operation

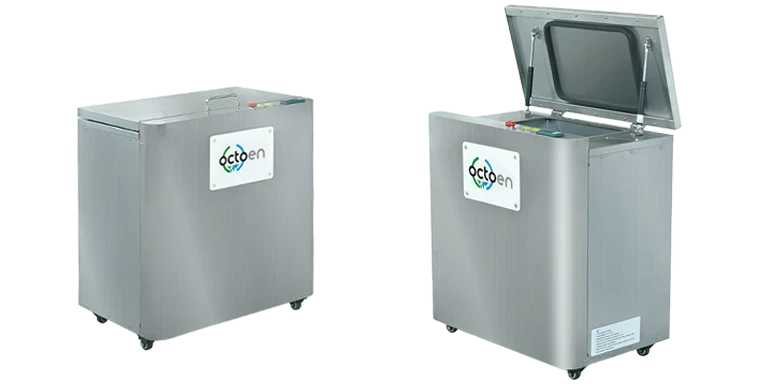

ECO-300KSN

Compost Fertilizer Machine Usage

  1. Filling Waste Products into the Product Hopper

    Waste filling in the composting fertilizer machine is an ecological is the first step in recycling. In this process, organic waste such as fruit and vegetable residues materials are used. Correct waste selection and balanced filling are the key to efficient compost production. is the key.

  2. Program Setting

    After waste filling, the compost fertilizer machine is programmed for waste sorting. At this stage, parameters such as waste density, moisture content, temperature and sorting time are determined. In this way, waste sorting and compost production takes place automatically.

  3. Conversion Time

    The composting machine turns the waste into compost after the programmed time. In this process, the waste is separated, heated, dried and decomposed by microbial bacteria. This process takes 6-12 hours on average.

  4. Removing the Product Hopper

    The compost fertilizer machine completes the compost production after the waste is separated. In this process, when the compost production is completed, the product chamber is removed and the compost product is obtained. This product can be used as a natural fertilizer.

Technical Specs

Technical Specifications
Model Name ECO-300 KSN
Daily Input Processing Capacity 300 kg/day - 661.4 lb/day
Total Processing Duration The total processing duration ranges from 12 to 24 hours, based on the moisture level, type, and density of the organic waste.
Waste Reduction Rate Reduces the volume of organic waste by up to 90%, depending on the input material.
Processing Technology & Method Rapid microbial decomposition under controlled aerobic conditions
Control Method Siemens PLC integrated with 7” HMI Touchscreen Panel
Remote Monitoring & Control Equipped with remote control and monitoring features.Supports OCTOEN CarbonTrack® software for carbon footprint tracking and efficient waste management planning.
Power Consumption kwh/Day 55 kwh/Day
Total Power 10 kW
Power Requirement Supply : 3 phaze,Frequency : 50/60HZ,Voltage : 380V - 400V
Noise ≤60dB
Machine Weight 1300 kg / 2866.0 lb
Dimensions (W x D x H) 2300 x 1960 x 1865 mm,90.6 × 77.2 × 73.4 in
Working Temperature 45-75℃
Contact Parts Metarial AISI 304 & AISI 316
Surface Metarial Q235B, Powder-coated
Enzyme Tank & Automatic Dosing System The system includes an enzyme tank with automatic dosing, allowing precise and consistent enzyme application throughout the composting cycle, improving efficiency and reducing manual handling.
Weight Control Includes 4 load sensors for real-time waste input monitoring and overload prevention.
Odor Control System Equipped with a multi-stage odor control system including activated carbon filters and UVC sterilization to eliminate unpleasant smells during processing.
Optional Features • Integrated Shredder Unit – Pre-processes waste to improve composting efficiency • Dehydration Module – Reduces moisture content before composting • Screw Conveyor – Transfers material between units automatically • Belt Conveyor – For continuous feeding or discharge of material • Automatic Compost Discharge System – Enables fully automated unloading • Feeding Hopper – Facilitates safe and efficient waste input
Safety Features •Emergency stop button •Safety interlock on doors •Automatic stop of mixing arms when lids are opened •Touchscreen lock (screen lock) to prevent unauthorized access •Overload protection system •Overheat protection system •Automatic shut-off in case of malfunction •Audible alarm for system errors or improper operatio
Certifications • CE Certificate • ISO 9001 – Quality Management System • ISO 10002 – Customer Satisfaction & Complaint Management • ISO 14001 – Environmental Management System • ISO 45001 – Occupational Health and Safety Management • EN ISO 12100 – Safety of Machinery: General Design Principles • EN 60204-1 – Electrical Equipment Safety for Machinery • EN ISO 3834-2 – Welding Quality Requirements • Certificate of Conformity
Place of Manufacure Made in TÜRKİYE
Warranty 1 Year + Extended Warranty

Optimize Your Business Processes with Remote Control Panel

Octoen’s remote control panel streamlines your business processes and boosts efficiency. Leverage our AI-powered solutions to harness technology at its best.

Optimize Your Business Processes with Remote Control Panel

Optional Features

  • Container Lifting System

    Lifts and empties 120–240L containers directly into the system, ensuring safe and ergonomic loading.

  • Integrated Shredder Unit

    Pre-processes waste to enhance composting efficiency.

  • Dewatering Module

    Reduces moisture content before composting.

  • Screw Conveyor

    Automatically transfers materials between units.

  • Belt Conveyor

    For continuous material feeding or discharge.

  • Automatic Compost Discharge System

    Provides fully automated discharge.

  • Feeding Hopper

    Facilitates safe and efficient waste input.

High Performance

  • Large Capacity

    Seamless performance with high-volume waste processing capacity.

  • Modular Design

    Scalable, flexible system solutions tailored to your needs.

  • Fast Processing

    Optimized performance for uninterrupted and rapid composting.

Universal Features

  • Multilingual Support

    Offers multilingual options for global use, catering to all users.

  • Universal Compatibility

    Operates seamlessly worldwide, fully adapting to local needs.

  • International Standards

    Compliant with ISO and environmental standards, reliable and sustainable.

  • Easy Integration

    Fast integration with existing systems and full control via remote management.

Compost Fertilizer Machine Usage

What can be processed with Octoen?

  • Vegetables
  • Rice & Pasta
  • Fruits
  • Baked Goods
  • Seafood Shells
  • Chicken & Small Bones
  • Fish & Other Bones
  • Egg Shells

ECO-300KSN

Released Products

  • Compost Fertilizer

  • Pet Food

  • Animal Feed

The ECO-300KSN KSN helps you protect the environment and reduce your operating costs by reducing your waste by up to 90%. While feeding your soil with the compost fertilizer it produces, it contributes to your sustainability goals by converting non-recyclable waste into energy. In this way, it provides a more efficient waste management and allows you to invest in the future. ECO-300KSN KSN helps you fulfill your responsibility to nature while increasing the profitability of your business by saving water and energy.

Gallery

From the field

Discover images and success stories of projects carried out with OCTOEN's eco-friendly compost fertilizer machines.

Blog

F.A.Q.

Frequently Asked Questions

The ECO-300KSN features an intelligent daily input processing capacity of exactly 300 kg (661.4 lbs). This high-volume throughput is managed by a smart weight control system utilizing 4 advanced load sensors, which provide real-time monitoring and automated overload prevention to optimize the daily cycle.

Forward-thinking commercial enterprises, industrial facilities, and municipal operations generating high volumes of organic waste should consider this system. It is specifically designed for organizations looking to digitize and automate their waste management using smart technologies, such as the integrated Siemens PLC, 7” HMI touchscreen, remote monitoring capabilities, and OCTOEN CarbonTrack® software for data-driven carbon footprint tracking.

No. By default, the base model does not include a shredder. However, an "Integrated Shredder Unit" is available as an optional smart module. When integrated, this module automatically pre-processes the waste to maximize its surface area, which intelligently accelerates the microbial decomposition process and enhances overall energy efficiency.

Buyers must verify that their facility can support the machine's industrial-grade technical requirements. Critical confirmations include a 3-phase electrical supply (380V - 400V, 50/60HZ) capable of handling a 10 kW total power load, adequate spatial dimensions (2300 x 1960 x 1865 mm) for the automated processing arms to operate safely, and structural flooring engineered to safely bear the machine's 1300 kg (2866.0 lbs) base weight alongside dynamic waste loads.

The ECO-300KSN algorithmically reduces the volume of organic waste by up to 90%.

Because of its large capacity, the ECO-300KSN requires a 3-phase power supply running at 380V - 400V (50/60Hz). It has a total power rating of 10 kW and an estimated power consumption of 55 kWh per day.

The ECO-300KSN is equipped with a highly accurate weight control system that uses 4 integrated load sensors. This allows for real-time monitoring of waste input and actively prevents the machine from being overloaded.

To withstand industrial use and resist corrosion, the internal contact parts are constructed from premium AISI 304 and AISI 316 stainless steel. The outer surface is made of heavy-duty Q235B steel with a powder-coated finish.

You do not need to add enzymes manually. The system features a built-in enzyme tank with an automatic dosing system, ensuring precise and consistent application throughout the entire composting cycle for maximum efficiency.
