Household & Industrial Type Compost Fertilizer Machines
The ECO-80KSN converts over 950% of 80kg of waste per day with automatic detection and microbial decomposition. It provides businesses with effective, environmentally friendly and easy waste management.
| Model Name | ECO-80 KSN |
| Daily Input Processing Capacity | 80 kg/day - 176.4 lb/day |
| Total Processing Duration | The total processing duration ranges from 12 to 24 hours, based on the moisture level, type, and density of the organic waste. |
| Waste Reduction Rate | Reduces the volume of organic waste by up to 90%, depending on the input material. |
| Processing Technology & Method | Rapid microbial decomposition under controlled aerobic conditions |
| Control Method | Siemens PLC integrated with 7” HMI Touchscreen Panel |
| Remote Monitoring & Control | Equipped with remote control and monitoring features.Supports OCTOEN CarbonTrack® software for carbon footprint tracking and efficient waste management planning. |
| Power Consumption kwh/Day | 15 kwh/Day |
| Total Power | 4.3 kW |
| Power Requirement | Supply : 2 phaze,Frequency : 50/60HZ,Voltage : 220V |
| Noise | ≤50dB |
| Machine Weight | 170 kg / 374.8 lb |
| Dimensions (W x D x H) | 554 x 860 x 624 mm,21.8 × 33.9 × 24.6 in |
| Working Temperature | 45-75℃ |
| Contact Parts Metarial | AISI 304 & AISI 316 |
| Surface Metarial | AISI 304 |
| Enzyme Tank & Automatic Dosing System | The system includes an enzyme tank with automatic dosing, allowing precise and consistent enzyme application throughout the composting cycle, improving efficiency and reducing manual handling. |
| Weight Control | Includes 4 load sensors for real-time waste input monitoring and overload prevention. |
| Odor Control System | Equipped with a multi-stage odor control system including activated carbon filters and UVC sterilization to eliminate unpleasant smells during processing. |
| Optional Features | • Integrated Shredder Unit – Pre-processes waste to improve composting efficiency • Dehydration Module – Reduces moisture content before composting • Screw Conveyor – Transfers material between units automatically • Belt Conveyor – For continuous feeding or discharge of material • Automatic Compost Discharge System – Enables fully automated unloading • Feeding Hopper – Facilitates safe and efficient waste input |

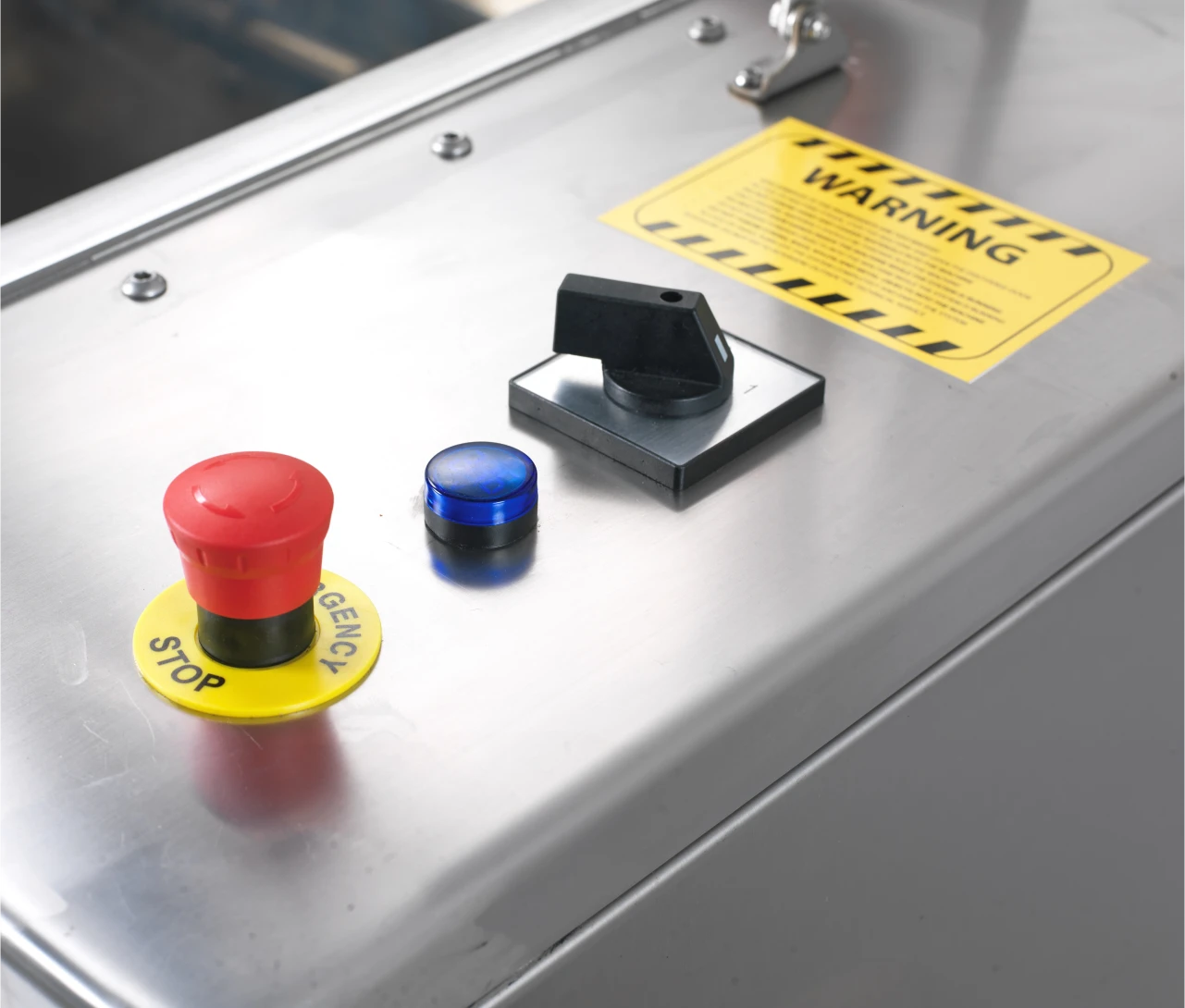

| Safety Features | •Emergency stop button •Safety interlock on doors •Automatic stop of mixing arms when lids are opened •Touchscreen lock (screen lock) to prevent unauthorized access •Overload protection system •Overheat protection system •Automatic shut-off in case of malfunction •Audible alarm for system errors or improper operatio |
| Certifications | • CE Certificate • ISO 9001 – Quality Management System • ISO 10002 – Customer Satisfaction & Complaint Management • ISO 14001 – Environmental Management System • ISO 45001 – Occupational Health and Safety Management • EN ISO 12100 – Safety of Machinery: General Design Principles • EN 60204-1 – Electrical Equipment Safety for Machinery • EN ISO 3834-2 – Welding Quality Requirements • Certificate of Conformity |
| Place of Manufacure | Made in TÜRKİYE |
Compost Fertilizer
Pet Food
Animal Feed
The ECO-80KSN KSN helps you protect the environment and reduce your operating costs by reducing your waste by up to 90%. While feeding your soil with the compost fertilizer it produces, it contributes to your sustainability goals by converting non-recyclable waste into energy. In this way, it provides a more efficient waste management and allows you to invest in the future. ECO-80KSN KSN helps you fulfill your responsibility to nature while increasing the profitability of your business by saving water and energy.
Vegetables
Rice & Pasta
Fruits
Baked Goods
Seafood Shells
Chicken & Small Bones
Fish & Other Bones
Egg Shells
Waste filling in the composting fertilizer machine is an ecological is the first step in recycling. In this process, organic waste such as fruit and vegetable residues materials are used. Correct waste selection and balanced filling are the key to efficient compost production. is the key.
...
After waste filling, the compost fertilizer machine is programmed for waste sorting. At this stage, parameters such as waste density, moisture content, temperature and sorting time are determined. In this way, waste sorting and compost production takes place automatically.
...
The composting machine turns the waste into compost after the programmed time. In this process, the waste is separated, heated, dried and decomposed by microbial bacteria. This process takes 6-12 hours on average.
...
The compost fertilizer machine completes the compost production after the waste is separated. In this process, when the compost production is completed, the product chamber is removed and the compost product is obtained. This product can be used as a natural fertilizer.
...
Malcolm Technology’s remote control panel streamlines your business processes and boosts efficiency. Leverage our AI-powered solutions to harness technology at its best.
| Model Name | ECO-80 KSN |
| Daily Input Processing Capacity | 80 kg/day - 176.4 lb/day |
| Total Processing Duration | The total processing duration ranges from 12 to 24 hours, based on the moisture level, type, and density of the organic waste. |
| Waste Reduction Rate | Reduces the volume of organic waste by up to 90%, depending on the input material. |
| Processing Technology & Method | Rapid microbial decomposition under controlled aerobic conditions |
| Control Method | Siemens PLC integrated with 7” HMI Touchscreen Panel |
| Remote Monitoring & Control | Equipped with remote control and monitoring features.Supports OCTOEN CarbonTrack® software for carbon footprint tracking and efficient waste management planning. |
| Power Consumption kwh/Day | 15 kwh/Day |
| Total Power | 4.3 kW |
| Power Requirement | Supply : 2 phaze,Frequency : 50/60HZ,Voltage : 220V |
| Noise | ≤50dB |
| Machine Weight | 170 kg / 374.8 lb |
| Dimensions (W x D x H) | 554 x 860 x 624 mm,21.8 × 33.9 × 24.6 in |
| Working Temperature | 45-75℃ |
| Contact Parts Metarial | AISI 304 & AISI 316 |
| Surface Metarial | AISI 304 |
| Enzyme Tank & Automatic Dosing System | The system includes an enzyme tank with automatic dosing, allowing precise and consistent enzyme application throughout the composting cycle, improving efficiency and reducing manual handling. |
| Weight Control | Includes 4 load sensors for real-time waste input monitoring and overload prevention. |
| Odor Control System | Equipped with a multi-stage odor control system including activated carbon filters and UVC sterilization to eliminate unpleasant smells during processing. |
| Optional Features | • Integrated Shredder Unit – Pre-processes waste to improve composting efficiency • Dehydration Module – Reduces moisture content before composting • Screw Conveyor – Transfers material between units automatically • Belt Conveyor – For continuous feeding or discharge of material • Automatic Compost Discharge System – Enables fully automated unloading • Feeding Hopper – Facilitates safe and efficient waste input |
| Safety Features | •Emergency stop button •Safety interlock on doors •Automatic stop of mixing arms when lids are opened •Touchscreen lock (screen lock) to prevent unauthorized access •Overload protection system •Overheat protection system •Automatic shut-off in case of malfunction •Audible alarm for system errors or improper operatio |
| Certifications | • CE Certificate • ISO 9001 – Quality Management System • ISO 10002 – Customer Satisfaction & Complaint Management • ISO 14001 – Environmental Management System • ISO 45001 – Occupational Health and Safety Management • EN ISO 12100 – Safety of Machinery: General Design Principles • EN 60204-1 – Electrical Equipment Safety for Machinery • EN ISO 3834-2 – Welding Quality Requirements • Certificate of Conformity |
| Place of Manufacure | Made in TÜRKİYE |
| Material | 316 L Stainless Steel |
| Processing Method | Fermentation and Decomposition |
| Processing Cycle | 12 to 24 Hours |
| Conversion Rate | >75-90% |
| Ambient Temperature | 40°C |
| Final Product | Organic Fertilizer, Pet Food, Animal Feed |
| Sound/Noise | ≤40 dB |
| Dimensions (LxWxH, cm) | 31 x 29 x 38 |
| Filter Technology | Multi UV-C 254 nm (14 lamps), Silica Gel, Activated Carbon Filter |
| Voltage | 220 V |
| Max. Power | 3.6 W |
| Control System | Automatic Detection |
| Decomposition Capacity | 5 KG |
| Fertilizer Lifespan | 6-12 Months |
| Net Weight | 8 KG |
| Power Consumption | 3.6 kWh |
| Decomposition Method | Microbial Decomposition |
| Add-On | Fertilizer Container Included |
| Warranty | 2 Years + Extended Warranty |
| Model Name | ECO-30 KSN |
| Daily Input Processing Capacity | 30 kg/day - 66.1 lb/day |
| Total Processing Duration | The total processing duration ranges from 12 to 24 hours, based on the moisture level, type, and density of the organic waste. |
| Waste Reduction Rate | Reduces the volume of organic waste by up to 90%, depending on the input material. |
| Processing Technology & Method | Rapid microbial decomposition under controlled aerobic conditions |
| Control Method | Siemens PLC integrated with 7” HMI Touchscreen Panel |
| Remote Monitoring & Control | Equipped with remote control and monitoring features.Supports OCTOEN CarbonTrack® software for carbon footprint tracking and efficient waste management planning. |
| Power Consumption kwh/Day | 5 kwh/Day |
| Total Power | 1.4 kW |
| Power Requirement | Supply : 2 phaze,Frequency : 50/60HZ,Voltage : 220V |
| Noise | ≤50dB |
| Machine Weight | 85 kg / 187.4 lb |
| Dimensions (W x D x H) | 554 x 860 x 624 mm,21.8 × 33.9 × 24.6 in |
| Working Temperature | 45-75℃ |
| Contact Parts Metarial | AISI 304 & AISI 316 |
| Surface Metarial | AISI 304 |
| Enzyme Tank & Automatic Dosing System | The system includes an enzyme tank with automatic dosing, allowing precise and consistent enzyme application throughout the composting cycle, improving efficiency and reducing manual handling. |
| Weight Control | Includes 4 load sensors for real-time waste input monitoring and overload prevention. |
| Odor Control System | Equipped with a multi-stage odor control system including activated carbon filters and UVC sterilization to eliminate unpleasant smells during processing. |
| Optional Features | • Integrated Shredder Unit – Pre-processes waste to improve composting efficiency • Dehydration Module – Reduces moisture content before composting • Screw Conveyor – Transfers material between units automatically • Belt Conveyor – For continuous feeding or discharge of material • Automatic Compost Discharge System – Enables fully automated unloading • Feeding Hopper – Facilitates safe and efficient waste input |
| Safety Features | •Emergency stop button •Safety interlock on doors •Automatic stop of mixing arms when lids are opened •Touchscreen lock (screen lock) to prevent unauthorized access •Overload protection system •Overheat protection system •Automatic shut-off in case of malfunction •Audible alarm for system errors or improper operatio |
| Certifications | • CE Certificate • ISO 9001 – Quality Management System • ISO 10002 – Customer Satisfaction & Complaint Management • ISO 14001 – Environmental Management System • ISO 45001 – Occupational Health and Safety Management • EN ISO 12100 – Safety of Machinery: General Design Principles • EN 60204-1 – Electrical Equipment Safety for Machinery • EN ISO 3834-2 – Welding Quality Requirements • Certificate of Conformity |
| Place of Manufacure | Made in TÜRKİYE |
| Model Name | ECO-80 KSN |
| Daily Input Processing Capacity | 80 kg/day - 176.4 lb/day |
| Total Processing Duration | The total processing duration ranges from 12 to 24 hours, based on the moisture level, type, and density of the organic waste. |
| Waste Reduction Rate | Reduces the volume of organic waste by up to 90%, depending on the input material. |
| Processing Technology & Method | Rapid microbial decomposition under controlled aerobic conditions |
| Control Method | Siemens PLC integrated with 7” HMI Touchscreen Panel |
| Remote Monitoring & Control | Equipped with remote control and monitoring features.Supports OCTOEN CarbonTrack® software for carbon footprint tracking and efficient waste management planning. |
| Power Consumption kwh/Day | 15 kwh/Day |
| Total Power | 4.3 kW |
| Power Requirement | Supply : 2 phaze,Frequency : 50/60HZ,Voltage : 220V |
| Noise | ≤50dB |
| Machine Weight | 170 kg / 374.8 lb |
| Dimensions (W x D x H) | 554 x 860 x 624 mm,21.8 × 33.9 × 24.6 in |
| Working Temperature | 45-75℃ |
| Contact Parts Metarial | AISI 304 & AISI 316 |
| Surface Metarial | AISI 304 |
| Enzyme Tank & Automatic Dosing System | The system includes an enzyme tank with automatic dosing, allowing precise and consistent enzyme application throughout the composting cycle, improving efficiency and reducing manual handling. |
| Weight Control | Includes 4 load sensors for real-time waste input monitoring and overload prevention. |
| Odor Control System | Equipped with a multi-stage odor control system including activated carbon filters and UVC sterilization to eliminate unpleasant smells during processing. |
| Optional Features | • Integrated Shredder Unit – Pre-processes waste to improve composting efficiency • Dehydration Module – Reduces moisture content before composting • Screw Conveyor – Transfers material between units automatically • Belt Conveyor – For continuous feeding or discharge of material • Automatic Compost Discharge System – Enables fully automated unloading • Feeding Hopper – Facilitates safe and efficient waste input |
| Safety Features | •Emergency stop button •Safety interlock on doors •Automatic stop of mixing arms when lids are opened •Touchscreen lock (screen lock) to prevent unauthorized access •Overload protection system •Overheat protection system •Automatic shut-off in case of malfunction •Audible alarm for system errors or improper operatio |
| Certifications | • CE Certificate • ISO 9001 – Quality Management System • ISO 10002 – Customer Satisfaction & Complaint Management • ISO 14001 – Environmental Management System • ISO 45001 – Occupational Health and Safety Management • EN ISO 12100 – Safety of Machinery: General Design Principles • EN 60204-1 – Electrical Equipment Safety for Machinery • EN ISO 3834-2 – Welding Quality Requirements • Certificate of Conformity |
| Place of Manufacure | Made in TÜRKİYE |
| Model Name | ECO-130 KSN |
| Daily Input Processing Capacity | 130 kg/day - 286.6 lb/day |
| Total Processing Duration | The total processing duration ranges from 12 to 24 hours, based on the moisture level, type, and density of the organic waste. |
| Waste Reduction Rate | Reduces the volume of organic waste by up to 90%, depending on the input material. |
| Processing Technology & Method | Rapid microbial decomposition under controlled aerobic conditions |
| Control Method | Siemens PLC integrated with 7” HMI Touchscreen Panel |
| Remote Monitoring & Control | Equipped with remote control and monitoring features.Supports OCTOEN CarbonTrack® software for carbon footprint tracking and efficient waste management planning. |
| Power Consumption kwh/Day | 20 kwh/Day |
| Total Power | 5 kW |
| Power Requirement | Supply : 3 phaze,Frequency : 50/60HZ,Voltage : 220V - 400V |
| Noise | ≤50dB |
| Machine Weight | 270 kg / 595.2 lb |
| Dimensions (W x D x H) | 720.50 x 1350 x 840 mm,28.4 × 53.1 × 33.1 in |
| Working Temperature | 45-75℃ |
| Contact Parts Metarial | AISI 304 & AISI 316 |
| Enzyme Tank & Automatic Dosing System | The system includes an enzyme tank with automatic dosing, allowing precise and consistent enzyme application throughout the composting cycle, improving efficiency and reducing manual handling. |
| Weight Control | Includes 4 load sensors for real-time waste input monitoring and overload prevention. |
| Odor Control System | Equipped with a multi-stage odor control system including activated carbon filters and UVC sterilization to eliminate unpleasant smells during processing. |
| Optional Features | • Integrated Shredder Unit – Pre-processes waste to improve composting efficiency • Dehydration Module – Reduces moisture content before composting • Screw Conveyor – Transfers material between units automatically • Belt Conveyor – For continuous feeding or discharge of material • Automatic Compost Discharge System – Enables fully automated unloading • Feeding Hopper – Facilitates safe and efficient waste input |
| Safety Features | •Emergency stop button •Safety interlock on doors •Automatic stop of mixing arms when lids are opened •Touchscreen lock (screen lock) to prevent unauthorized access •Overload protection system •Overheat protection system •Automatic shut-off in case of malfunction •Audible alarm for system errors or improper operatio |
| Certifications | • CE Certificate • ISO 9001 – Quality Management System • ISO 10002 – Customer Satisfaction & Complaint Management • ISO 14001 – Environmental Management System • ISO 45001 – Occupational Health and Safety Management • EN ISO 12100 – Safety of Machinery: General Design Principles • EN 60204-1 – Electrical Equipment Safety for Machinery • EN ISO 3834-2 – Welding Quality Requirements • Certificate of Conformity |
| Place of Manufacure | Made in TÜRKİYE |
| Model Name | ECO-300 KSN |
| Daily Input Processing Capacity | 300 kg/day - 661.4 lb/day |
| Total Processing Duration | The total processing duration ranges from 12 to 24 hours, based on the moisture level, type, and density of the organic waste. |
| Waste Reduction Rate | Reduces the volume of organic waste by up to 90%, depending on the input material. |
| Processing Technology & Method | Rapid microbial decomposition under controlled aerobic conditions |
| Control Method | Siemens PLC integrated with 7” HMI Touchscreen Panel |
| Remote Monitoring & Control | Equipped with remote control and monitoring features.Supports OCTOEN CarbonTrack® software for carbon footprint tracking and efficient waste management planning. |
| Power Consumption kwh/Day | 55 kwh/Day |
| Total Power | 10 kW |
| Power Requirement | Supply : 3 phaze,Frequency : 50/60HZ,Voltage : 380V - 400V |
| Noise | ≤60dB |
| Machine Weight | 1300 kg / 2866.0 lb |
| Dimensions (W x D x H) | 2300 x 1960 x 1865 mm,90.6 × 77.2 × 73.4 in |
| Working Temperature | 45-75℃ |
| Contact Parts Metarial | AISI 304 & AISI 316 |
| Surface Metarial | Q235B, Powder-coated |
| Enzyme Tank & Automatic Dosing System | The system includes an enzyme tank with automatic dosing, allowing precise and consistent enzyme application throughout the composting cycle, improving efficiency and reducing manual handling. |
| Weight Control | Includes 4 load sensors for real-time waste input monitoring and overload prevention. |
| Odor Control System | Equipped with a multi-stage odor control system including activated carbon filters and UVC sterilization to eliminate unpleasant smells during processing. |
| Optional Features | • Integrated Shredder Unit – Pre-processes waste to improve composting efficiency • Dehydration Module – Reduces moisture content before composting • Screw Conveyor – Transfers material between units automatically • Belt Conveyor – For continuous feeding or discharge of material • Automatic Compost Discharge System – Enables fully automated unloading • Feeding Hopper – Facilitates safe and efficient waste input |
| Safety Features | •Emergency stop button •Safety interlock on doors •Automatic stop of mixing arms when lids are opened •Touchscreen lock (screen lock) to prevent unauthorized access •Overload protection system •Overheat protection system •Automatic shut-off in case of malfunction •Audible alarm for system errors or improper operatio |
| Certifications | • CE Certificate • ISO 9001 – Quality Management System • ISO 10002 – Customer Satisfaction & Complaint Management • ISO 14001 – Environmental Management System • ISO 45001 – Occupational Health and Safety Management • EN ISO 12100 – Safety of Machinery: General Design Principles • EN 60204-1 – Electrical Equipment Safety for Machinery • EN ISO 3834-2 – Welding Quality Requirements • Certificate of Conformity |
| Place of Manufacure | Made in TÜRKİYE |
| Model Name | ECO-500 KSN |
| Daily Input Processing Capacity | 500 kg/day - 1102.3 lb/day |
| Total Processing Duration | The total processing duration ranges from 12 to 24 hours, based on the moisture level, type, and density of the organic waste. |
| Waste Reduction Rate | Reduces the volume of organic waste by up to 90%, depending on the input material. |
| Processing Technology & Method | Rapid microbial decomposition under controlled aerobic conditions |
| Control Method | Siemens PLC integrated with 7” HMI Touchscreen Panel |
| Remote Monitoring & Control | Equipped with remote control and monitoring features.Supports OCTOEN CarbonTrack® software for carbon footprint tracking and efficient waste management planning. |
| Power Consumption kwh/Day | 70 kwh/Day |
| Total Power | 12 kW |
| Power Requirement | Supply : 3 phaze,Frequency : 50/60HZ,Voltage : 380V - 400V |
| Noise | ≤60dB |
| Machine Weight | 1782 kg / 3928.3 lb |
| Dimensions (W x D x H) | 2950 x 1600 x 1650 mm,116.1 × 63.0 × 65.0 in |
| Working Temperature | 45-75℃ |
| Contact Parts Metarial | AISI 304 & AISI 316 |
| Surface Metarial | Q235B, Powder-coated |
| Enzyme Tank & Automatic Dosing System | The system includes an enzyme tank with automatic dosing, allowing precise and consistent enzyme application throughout the composting cycle, improving efficiency and reducing manual handling. |
| Weight Control | Includes 4 load sensors for real-time waste input monitoring and overload prevention. |
| Odor Control System | Equipped with a multi-stage odor control system including activated carbon filters and UVC sterilization to eliminate unpleasant smells during processing. |
| Optional Features | • Bin Lifting System – Lifts and empties 120–240L bins directly into the system for safe, ergonomic loading • Integrated Shredder Unit – Pre-processes waste to improve composting efficiency • Dehydration Module – Reduces moisture content before composting • Screw Conveyor – Transfers material between units automatically • Belt Conveyor – For continuous feeding or discharge of material • Automatic Compost Discharge System – Enables fully automated unloading • Feeding Hopper – Facilitates safe and efficient waste input |
| Safety Features | •Emergency stop button •Safety interlock on doors •Automatic stop of mixing arms when lids are opened •Touchscreen lock (screen lock) to prevent unauthorized access •Overload protection system •Overheat protection system •Automatic shut-off in case of malfunction •Audible alarm for system errors or improper operatio |
| Certifications | • CE Certificate • ISO 9001 – Quality Management System • ISO 10002 – Customer Satisfaction & Complaint Management • ISO 14001 – Environmental Management System • ISO 45001 – Occupational Health and Safety Management • EN ISO 12100 – Safety of Machinery: General Design Principles • EN 60204-1 – Electrical Equipment Safety for Machinery • EN ISO 3834-2 – Welding Quality Requirements • Certificate of Conformity |
| Place of Manufacure | Made in TÜRKİYE |
| Model Name | ECO-1000 KSN |
| Daily Input Processing Capacity | 1000 kg/day - 2204.6 lb/day |
| Total Processing Duration | The total processing duration ranges from 12 to 24 hours, based on the moisture level, type, and density of the organic waste. |
| Waste Reduction Rate | Reduces the volume of organic waste by up to 90%, depending on the input material. |
| Processing Technology & Method | Rapid microbial decomposition under controlled aerobic conditions |
| Control Method | Siemens PLC integrated with 7” HMI Touchscreen Panel |
| Remote Monitoring & Control | Equipped with remote control and monitoring features.Supports OCTOEN CarbonTrack® software for carbon footprint tracking and efficient waste management planning. |
| Power Consumption kwh/Day | 90 kwh/Day |
| Total Power | 24 kwh |
| Power Requirement | Supply : 3 phaze,Frequency : 50/60HZ,Voltage : 380V - 400V |
| Noise | ≤65dB |
| Machine Weight | 2700 kg / 5952 lb |
| Dimensions (W x D x H) | 3400 x 2300 x 2230 mm,133.9 x 90.6 x 87.8 in |
| Working Temperature | 45-75℃ |
| Contact Parts Metarial | AISI 304 & AISI 316 |
| Surface Metarial | Q235B, Powder-coated |
| Enzyme Tank & Automatic Dosing System | The system includes an enzyme tank with automatic dosing, allowing precise and consistent enzyme application throughout the composting cycle, improving efficiency and reducing manual handling. |
| Weight Control | Includes 4 load sensors for real-time waste input monitoring and overload prevention. |
| Odor Control System | Equipped with a multi-stage odor control system including activated carbon filters and UVC sterilization to eliminate unpleasant smells during processing. |
| Optional Features | • Bin Lifting System – Lifts and empties 120–240L bins directly into the system for safe, ergonomic loading • Integrated Shredder Unit – Pre-processes waste to improve composting efficiency • Dehydration Module – Reduces moisture content before composting • Screw Conveyor – Transfers material between units automatically • Belt Conveyor – For continuous feeding or discharge of material • Automatic Compost Discharge System – Enables fully automated unloading • Feeding Hopper – Facilitates safe and efficient waste input |
| Safety Features | •Emergency stop button •Safety interlock on doors •Automatic stop of mixing arms when lids are opened •Touchscreen lock (screen lock) to prevent unauthorized access •Overload protection system •Overheat protection system •Automatic shut-off in case of malfunction •Audible alarm for system errors or improper operatio |
| Certifications | • CE Certificate • ISO 9001 – Quality Management System • ISO 10002 – Customer Satisfaction & Complaint Management • ISO 14001 – Environmental Management System • ISO 45001 – Occupational Health and Safety Management • EN ISO 12100 – Safety of Machinery: General Design Principles • EN 60204-1 – Electrical Equipment Safety for Machinery • EN ISO 3834-2 – Welding Quality Requirements • Certificate of Conformity |
| Place of Manufacure | Made in TÜRKİYE |
| Model Name | ECO-2500 KSN |
| Daily Input Processing Capacity | 2500 kg/day - 5511.6 lb/day |
| Total Processing Duration | The total processing duration ranges from 12 to 24 hours, based on the moisture level, type, and density of the organic waste. |
| Waste Reduction Rate | Reduces the volume of organic waste by up to 90%, depending on the input material. |
| Processing Technology & Method | Rapid microbial decomposition under controlled aerobic conditions |
| Control Method | Siemens PLC integrated with 7” HMI Touchscreen Panel |
| Remote Monitoring & Control | Equipped with remote control and monitoring features.Supports OCTOEN CarbonTrack® software for carbon footprint tracking and efficient waste management planning. |
| Power Consumption kwh/Day | 180 kwh/Day |
| Total Power | 48 kW |
| Power Requirement | Supply : 3 phaze,Frequency : 50/60HZ,Voltage : 380V - 400V |
| Noise | ≤65dB |
| Machine Weight | 4500 kg / 9920.8 lb |
| Dimensions (W x D x H) | 5520 x 2750 x 2700 mm |
| Working Temperature | 45-75℃ |
| Contact Parts Metarial | AISI 304 & AISI 316 |
| Surface Metarial | Q235B, Powder-coated |
| Enzyme Tank & Automatic Dosing System | The system includes an enzyme tank with automatic dosing, allowing precise and consistent enzyme application throughout the composting cycle, improving efficiency and reducing manual handling. |
| Weight Control | Includes 4 load sensors for real-time waste input monitoring and overload prevention. |
| Odor Control System | Equipped with a multi-stage odor control system including activated carbon filters and UVC sterilization to eliminate unpleasant smells during processing. |
| Optional Features | • Bin Lifting System – Lifts and empties 120–240L bins directly into the system for safe, ergonomic loading • Integrated Shredder Unit – Pre-processes waste to improve composting efficiency • Dehydration Module – Reduces moisture content before composting • Screw Conveyor – Transfers material between units automatically • Belt Conveyor – For continuous feeding or discharge of material • Automatic Compost Discharge System – Enables fully automated unloading • Feeding Hopper – Facilitates safe and efficient waste input |
| Safety Features | •Emergency stop button •Safety interlock on doors •Automatic stop of mixing arms when lids are opened •Touchscreen lock (screen lock) to prevent unauthorized access •Overload protection system •Overheat protection system •Automatic shut-off in case of malfunction •Audible alarm for system errors or improper operatio |
| Certifications | • CE Certificate • ISO 9001 – Quality Management System • ISO 10002 – Customer Satisfaction & Complaint Management • ISO 14001 – Environmental Management System • ISO 45001 – Occupational Health and Safety Management • EN ISO 12100 – Safety of Machinery: General Design Principles • EN 60204-1 – Electrical Equipment Safety for Machinery • EN ISO 3834-2 – Welding Quality Requirements • Certificate of Conformity |
| Place of Manufacure | Made in TÜRKİYE |
| Model Name | ECO-5000 KSN |
| Daily Input Processing Capacity | 5000 kg/day - 11,023.1 lb/day |
| Total Processing Duration | The total processing duration ranges from 12 to 24 hours, based on the moisture level, type, and density of the organic waste. |
| Waste Reduction Rate | Reduces the volume of organic waste by up to 90%, depending on the input material. |
| Processing Technology & Method | Rapid microbial decomposition under controlled aerobic conditions |
| Control Method | Siemens PLC integrated with 7” HMI Touchscreen Panel |
| Remote Monitoring & Control | Equipped with remote control and monitoring features. Supports OCTOEN CarbonTrack® software for carbon footprint tracking and efficient waste management planning. |
| Power Consumption kwh/Day | 360 kwh/day |
| Total Power | 77 kW |
| Power Requirement | Supply: 3 phase, Frequency: 50/60HZ, Voltage: 380V - 400V |
| Noise | ≤65dB |
| Machine Weight | 9000 kg / 19,841.6 lb |
| Dimensions (W x D x H) | 5600 x 4200 x 2600 mm, 220.5 × 165.4 × 102.4 in |
| Working Temperature | 45-75℃ |
| Contact Parts Material | AISI 304 & AISI 316 |
| Surface Material | Q235B, Powder-coated |
| Enzyme Tank & Automatic Dosing System | The system includes an enzyme tank with automatic dosing, allowing precise and consistent enzyme application throughout the composting cycle, improving efficiency and reducing manual handling. |
| Weight Control | Includes 4 load sensors for real-time waste input monitoring and overload prevention. |
| Odor Control System | Equipped with a multi-stage odor control system including activated carbon filters and UVC sterilization to eliminate unpleasant smells during processing. |
| Optional Features | Bin Lifting System – Lifts and empties 120–240L bins directly into the system for safe, ergonomic loading; Integrated Shredder Unit – Pre-processes waste to improve composting efficiency; Dehydration Module – Reduces moisture content before composting; Screw Conveyor – Transfers material between units automatically; Belt Conveyor – For continuous feeding or discharge of material; Automatic Compost Discharge System – Enables fully automated unloading; Feeding Hopper – Facilitates safe and efficient waste input |
| Safety Features | Emergency stop button; Safety interlock on doors; Automatic stop of mixing arms when lids are opened; Touchscreen lock (screen lock) to prevent unauthorized access; Overload protection system; Overheat protection system; Automatic shut-off in case of malfunction; Audible alarm for system errors or improper operation |
| Certifications | CE Certificate; ISO 9001 – Quality Management System; ISO 10002 – Customer Satisfaction & Complaint Management; ISO 14001 – Environmental Management System; ISO 45001 – Occupational Health and Safety Management; EN ISO 12100 – Safety of Machinery: General Design Principles; EN 60204-1 – Electrical Equipment Safety for Machinery; EN ISO 3834-2 – Welding Quality Requirements; Certificate of Conformity |
| Place of Manufacture | Made in TÜRKİYE |
| Material | 316 L Stainless Steel |
| Processing Method | Fermentation and Decomposition |
| Processing Cycle | 12 to 24 Hours |
| Conversion Rate | 90% |
| Voltage | 220 V |
| Net Weight | 480 kg |
| Safety Features | Online Monitoring and Control, Integrated Shredder |
| Warranty | Warranty |
| Material | 316 L Stainless Steel |
| Processing Method | Fermentation and Decomposition |
| Processing Cycle | 12 to 24 Hours |
| Conversion Rate | 90% |
| Voltage | 220 V |
| Net Weight | 480 kg |
| Safety Features | Online Monitoring and Control, Integrated Shredder |
| Warranty | Warranty |
TR Octoen
USA Octoen
ES Octoen
Compost-it
